ΝΙΧ 1200

Download PDF

LIGHT TECHNOLOGY

LED

System Power:

28W / 52W

Luminous Flux:

3141Lm

Luminaire Efiiciency:

112Lm/W

Beam Angle:

120º

Protection Rating Class:

IP65 , I

Colour:

Grey / White

Colour Rendering Index (CRI):

>80

Colour Temperature:

4000K

Gear:

ON/OFF , DALI , 1-10V Dimmable

Dimensions:

L:1200 x W:76 x H:67mm

System Power: 28W / 52W

Luminous Flux: 3141Lm

Luminaire Efiiciency: 112Lm/W

Beam Angle: 120º

Protection Rating Class: IP65 , I

Colour: Grey / White

Colour Rendering Index (CRI): >80

Colour Temperature: 4000K

Gear: ON/OFF , DALI , 1-10V Dimmable

Dimensions: L:1200 x W:76 x H:67mm

DETAILS

APPLICATION
Industrial Lighting

MANUFACTURER

COUNTRY OF ORIGIN
SPAIN

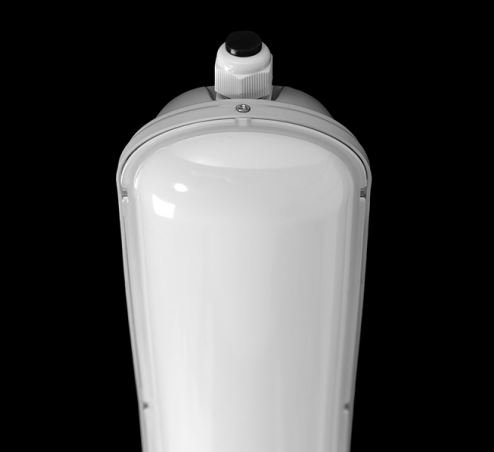

ΝΙΧ 1200

Waterproof luminaire from the TROLL family Nix setting an advanced and innovative thermal balance system through passive dissipation with stable colour temperature of 4000º K (neutral white) optimised to be used as lighting of parking, garages or industrial areas. Designed for wall or ceiling surface mounted as well as hanging. Body made of polycarbonate finished in grey. Luminaire is IP65. Luminaire built-in an methacrylate diffuser with an angle beam of 120º. Luminaire sets a 53 W LED source with CRI higher than 80 % and a chromatic dispersion lower than 3 SMCD. Fixture has a luminous flux of 5895 Lm, with an efficiency of 113 Lm/W and a total consumption of 52 W. The average life for the luminaire is 30000 h (stabilised at a minimum flux of 70 % from the original). Luminaire built-in an auxiliary gear fed at 220-240V , 50/60 Hz.
