LAMPTUB 60

Download PDF
LAMPTUB 60 LAMPTUB 60 LAMPTUB 60 LAMPTUB 60 LAMPTUB 60 LAMPTUB 60 LAMPTUB 60 LAMPTUB 60 LAMPTUB 60
Previous
Next
LIGHT TECHNOLOGY
LED
System Power:
10W / 11W / 12W / 17W / 25W
Colour Temperature:
2700K / 3000K / 4000K / Dynamic White (2700K - 6500K)
Luminous Flux:
From 599Lm up to 3189Lm
Colour Rendering Index (CRI):
>90
Luminaire Efficiency:
From 39.02Lm/W up to 265.75Lm/W
Lighting Distribution:
Direct / Direct-Indirect
Weight:
From 2.11Kg up to 4.01Kg
Protection rating. Class:
IP20 , I,II
Colour:
White / Oyster White / Black / Brown / Blue / Grey / Red / Orange
Dimensions:
L:840 x H:63mm / L:1120 x H:63mm / L:1680 x H:63mm
Gear:
ON/OFF , DALI
System Power: 10W / 11W / 12W / 17W / 25W
Colour Temperature: 2700K / 3000K / 4000K / Dynamic White (2700K - 6500K)
Luminous Flux: From 599Lm up to 3189Lm
Colour Rendering Index (CRI): >90
Luminaire Efficiency: From 39.02Lm/W up to 265.75Lm/W
Lighting Distribution: Direct / Direct-Indirect
Weight: From 2.11Kg up to 4.01Kg
Protection rating. Class: IP20 , I,II
Colour: White / Oyster White / Black / Brown / Blue / Grey / Red / Orange
Dimensions: L:840 x H:63mm / L:1120 x H:63mm / L:1680 x H:63mm
Gear: ON/OFF , DALI
DETAILS
Next
DETAILS

APPLICATION

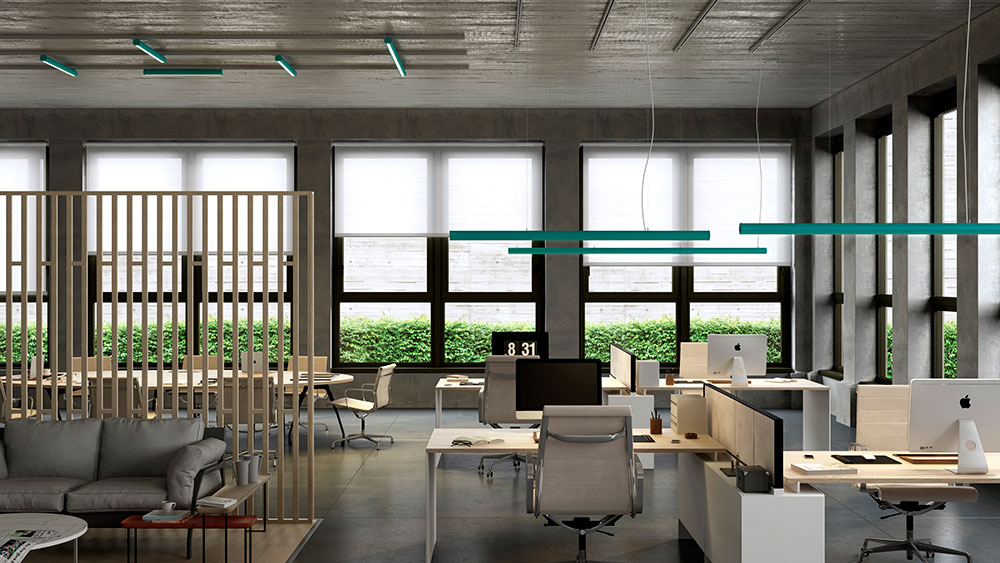

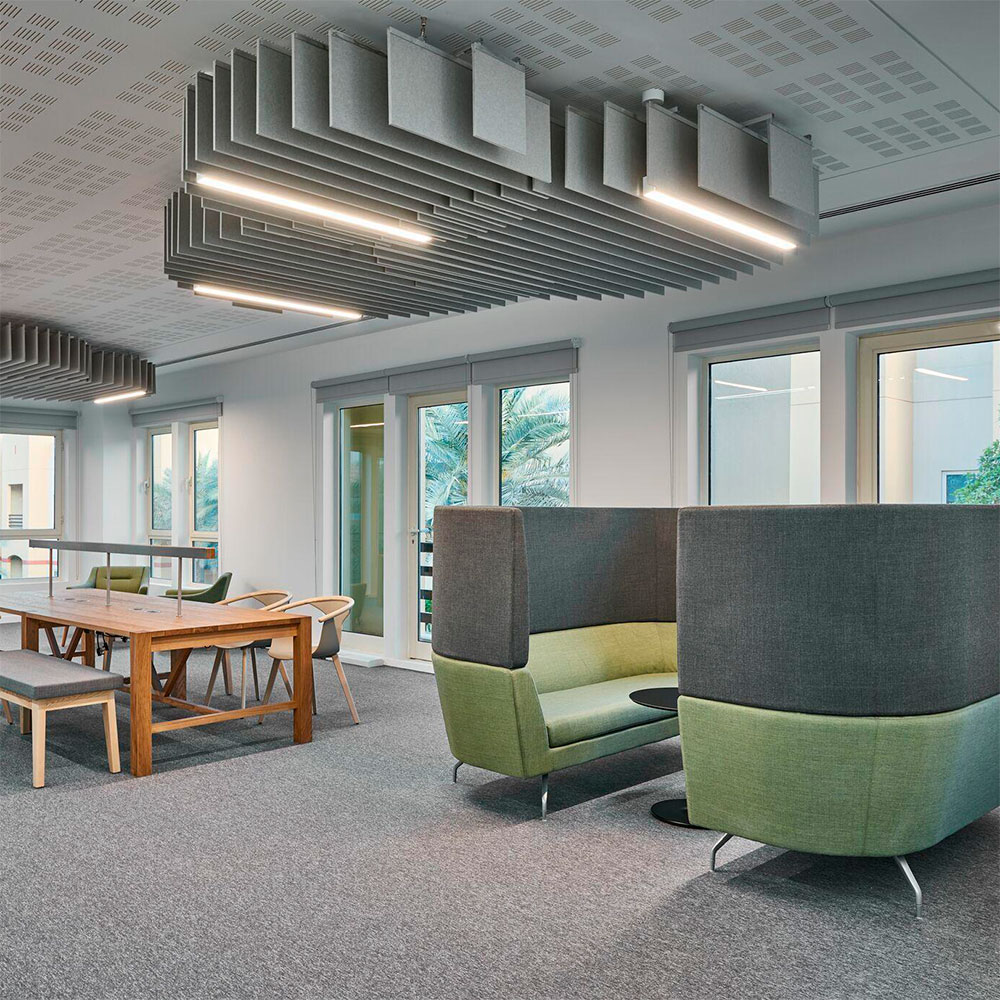

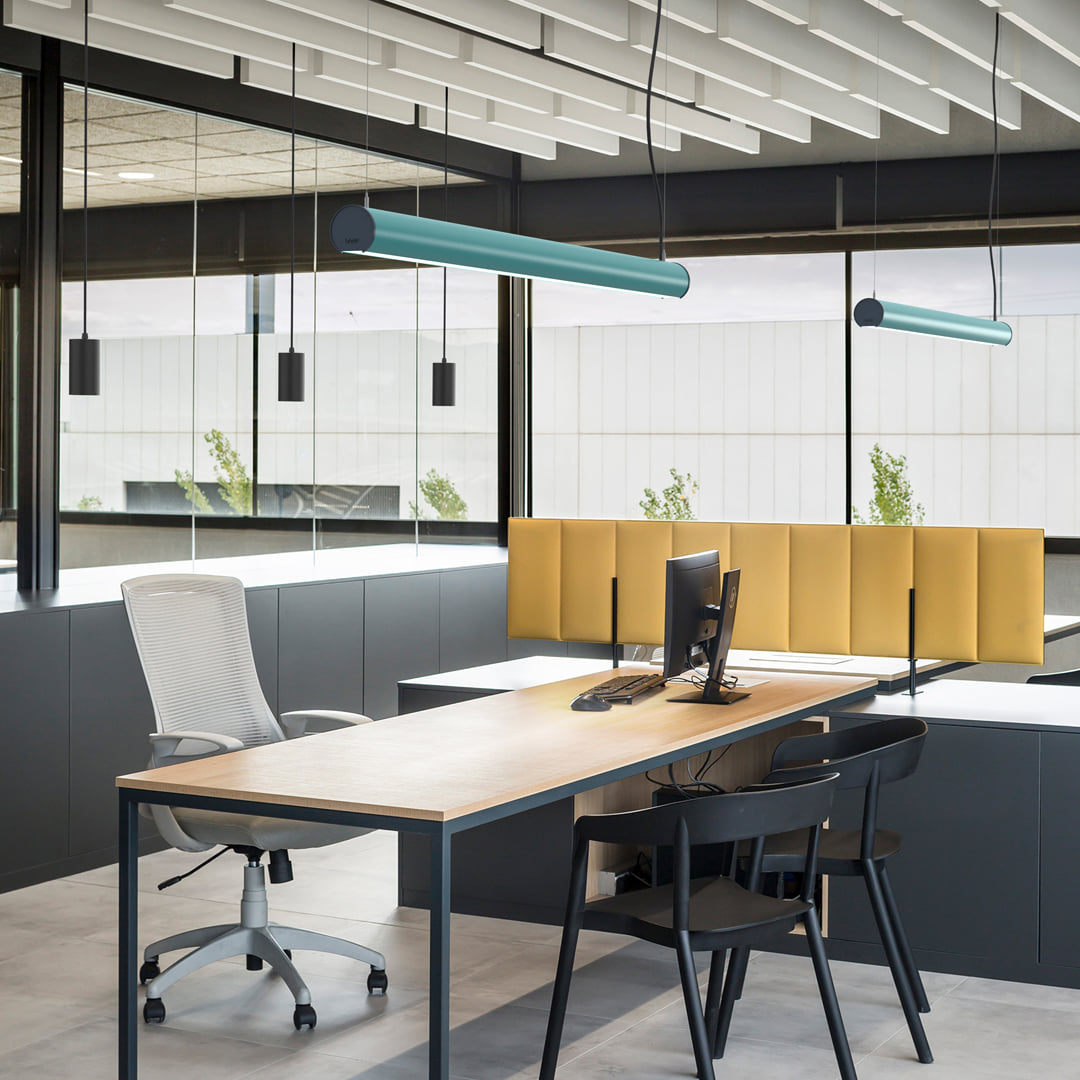

Office Lighting
Interior & Architectural Lighitng

  • MANUFACTURER
  • COUNTRY OF ORIGIN
  • SPAIN

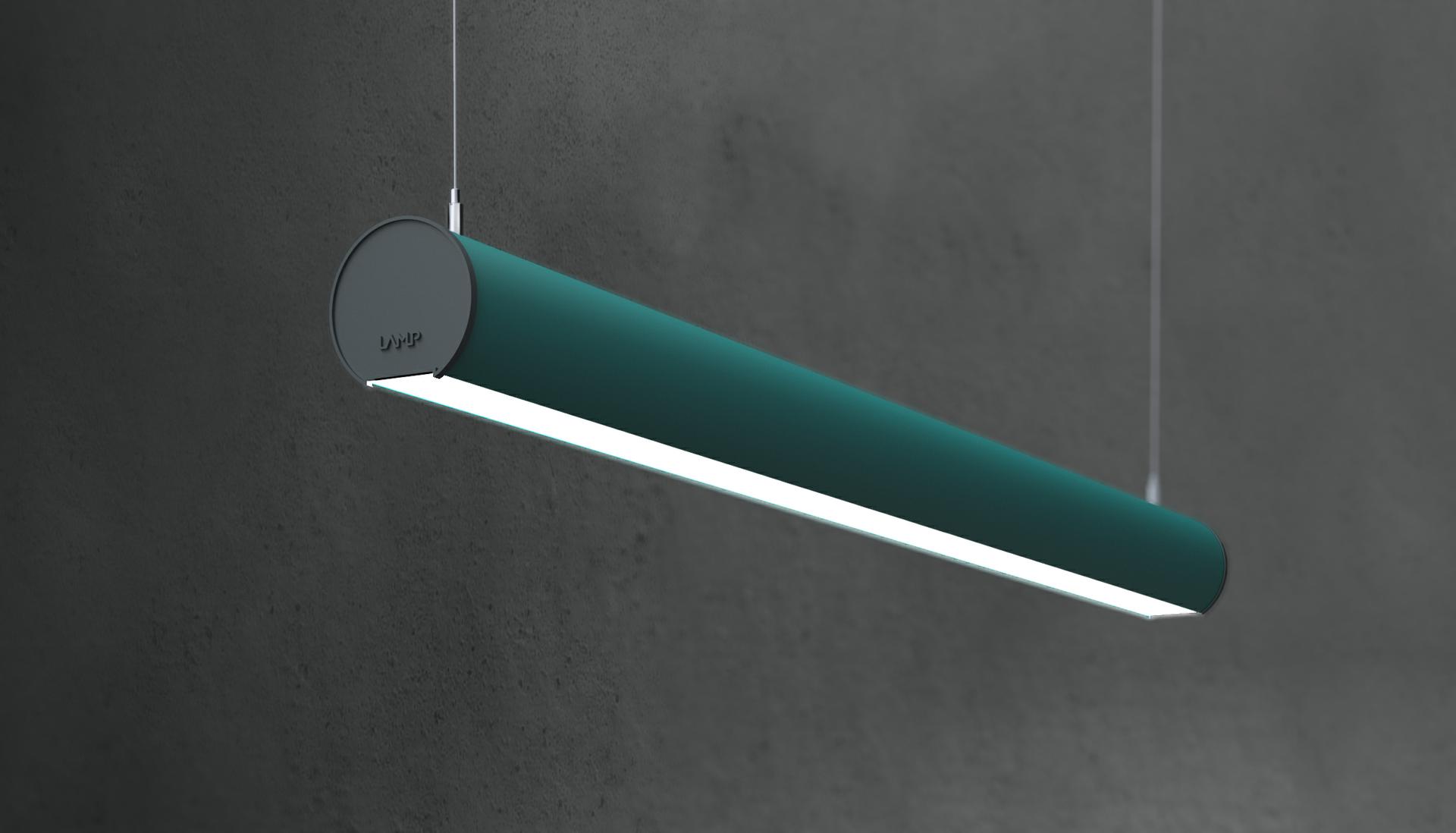

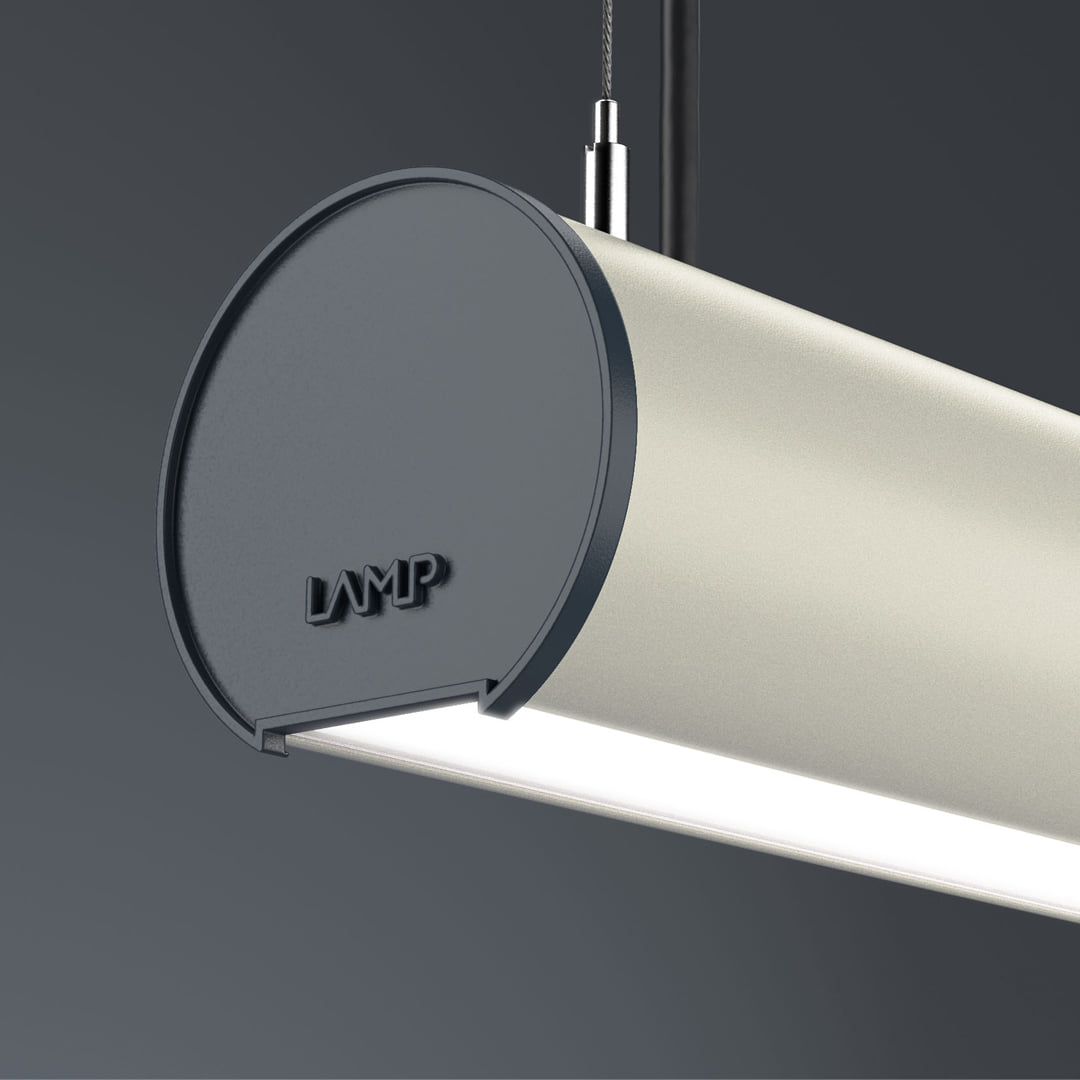

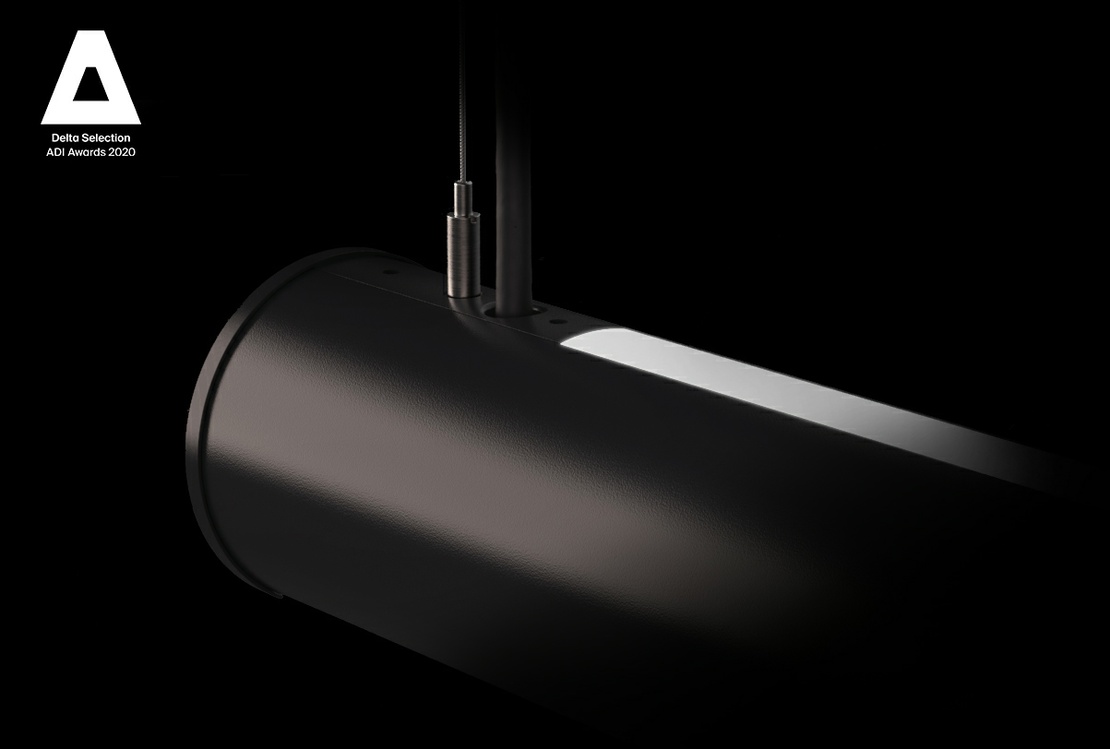

LAMPTUB 60

Lamptub 60 is the redesign of its predecessor, the classic Lamptub 80 luminaire with a circular area, which came into being more than 25 years ago. This new family of Lamptub 60 linear luminaires not only represents an aesthetic and technological update, its essence has been reinvented to respond to the new needs of constantly evolving demanding spaces, thanks to its lighting versatility and its multiple installation options.

Some of the aspects of this large family to be highlighted are:

Visual comfort: With Opal and Opal Confort diffuser options for better lighting control and glare reduction.

Photobiological safety: Luminaire classified as 'risk-free' (RG0) according to the Photobiological Risk standard UNE 62471.

Technological variety: Different levels of Lamp's technology gradient in different colour temperatures (2,700, 3,000 and 4,000K) and tunable whites.

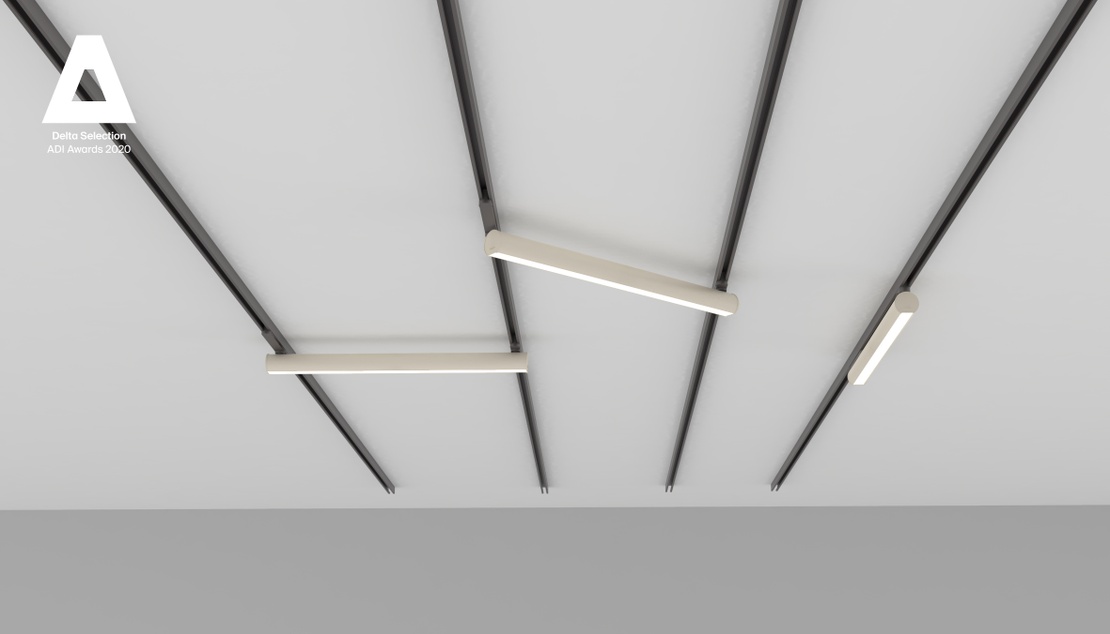

Versatility: Multiple installation possibilities such as surface or suspended track for integration into Nomadic System, or suspended track with recessed or surface-mounted rose.

Sustainability: Manufactured from recycled extrusion aluminium.

The LAMPTUB 60 luminaire, in addition to the black and white finish options, comes with two new palettes of finishes that promote sociability, well-being, emotion, and connection with nature: Wellbeing and Be Social palette, giving the option of two-tone configurations, thanks to the combination of their end covers.

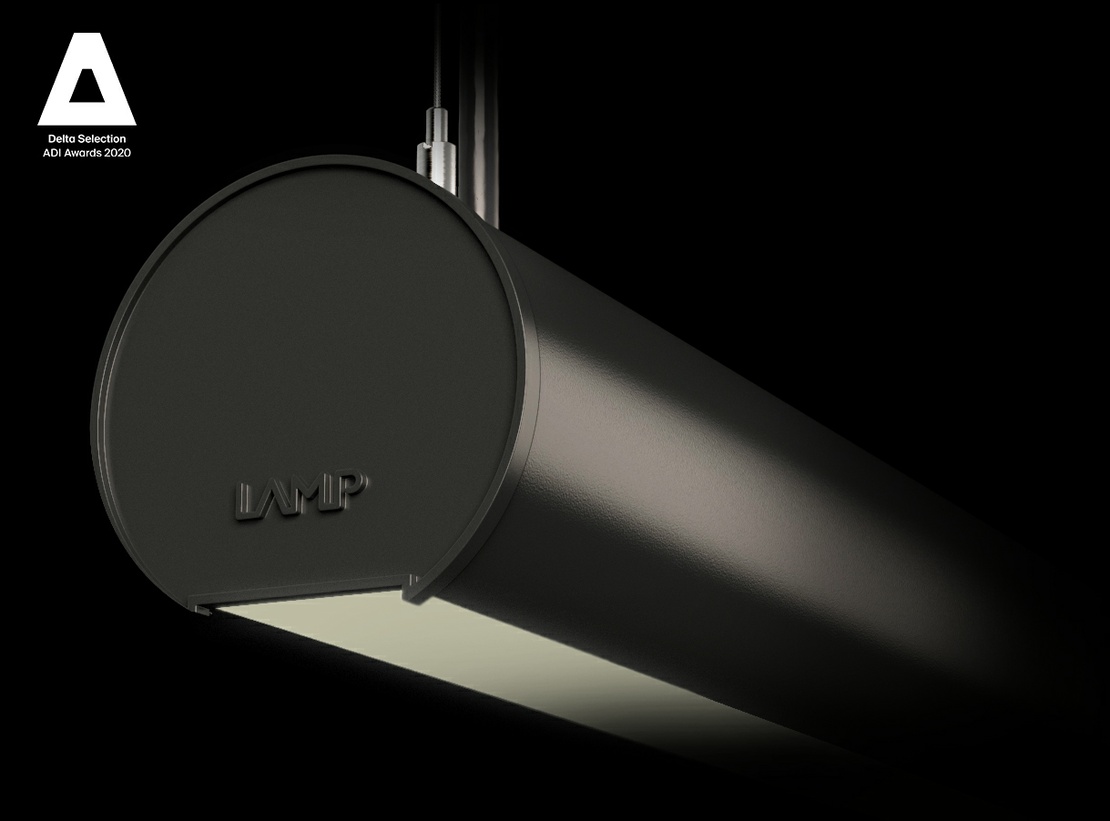

LAMPTUB 60 was one of the products selected in the 2020 Delta Awards, awarded by the Industrial Design Association of Fostering Arts and Design (ADI-FAD).
