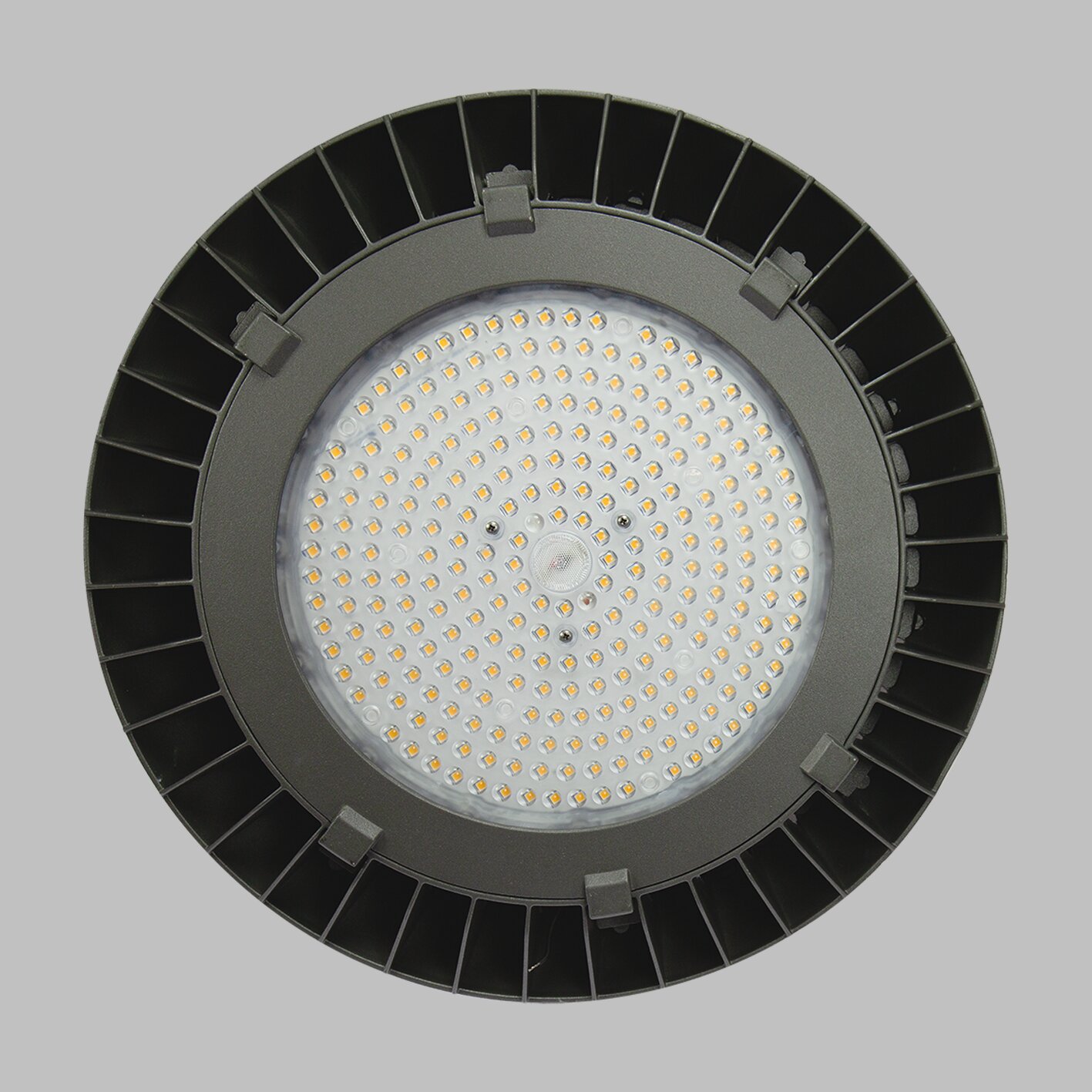

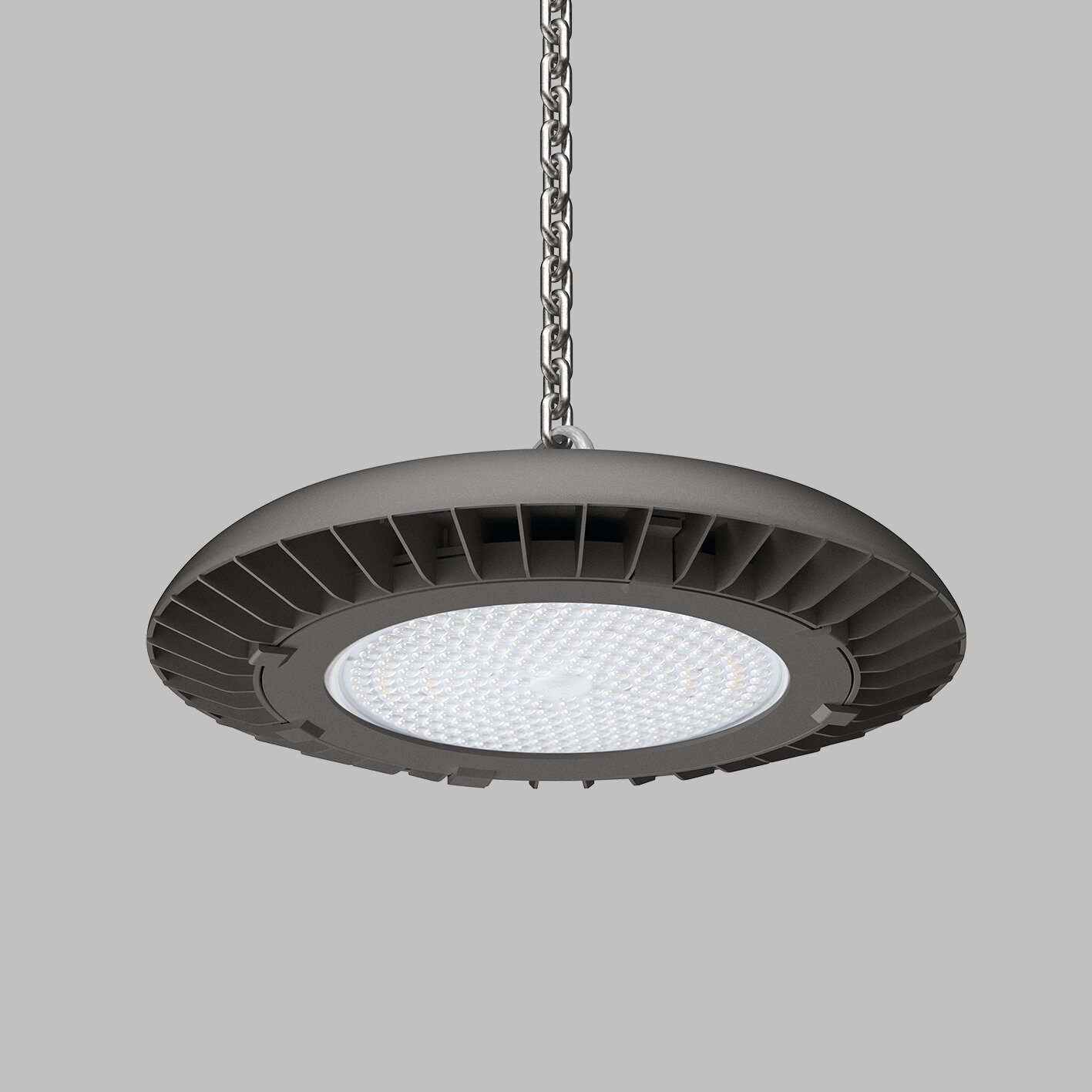

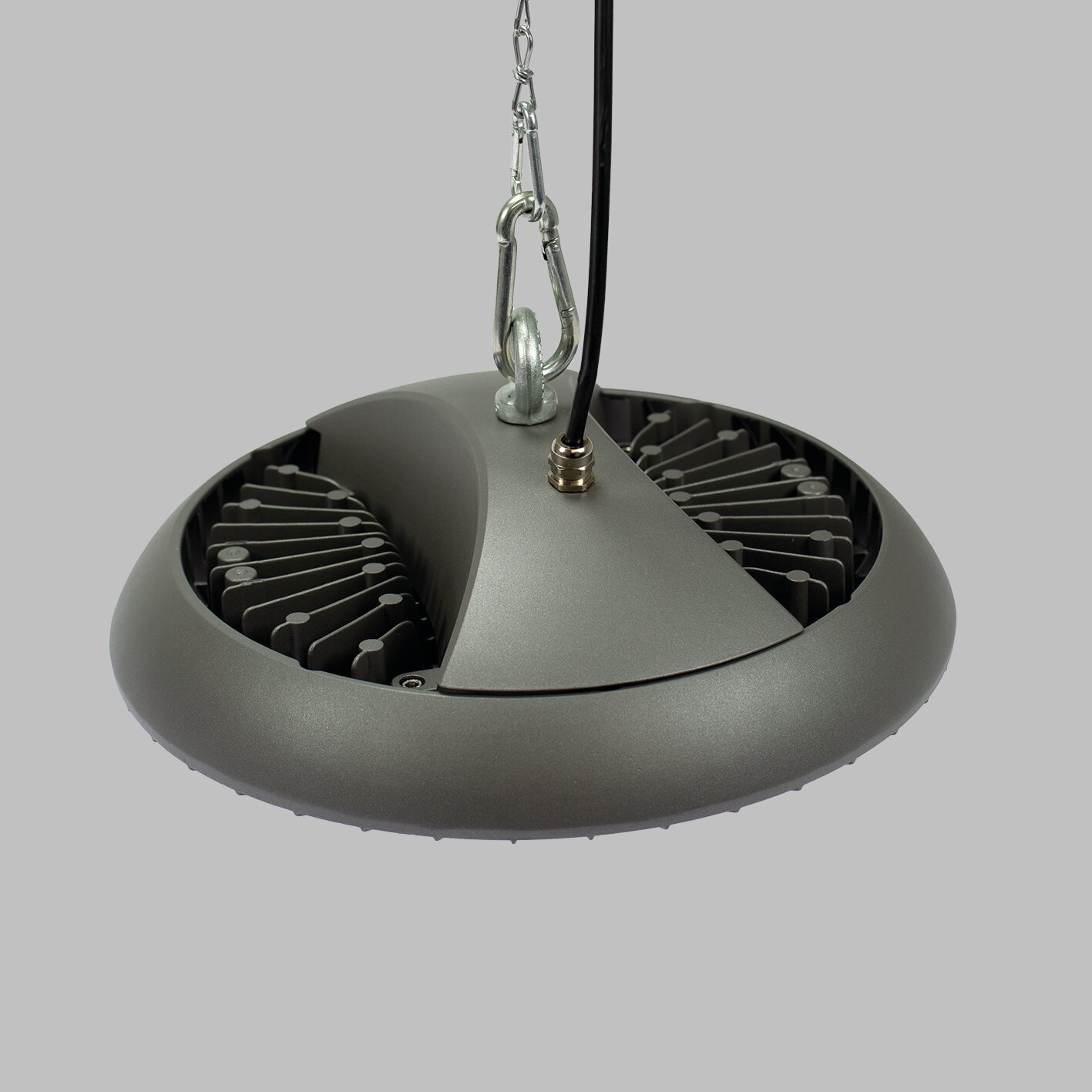

CAKE II 120

Download PDF

LIGHT TECHNOLOGY

LED

Colour Temperature:

4000K

Colour Rendering Index (CRI):

>80

System Power:

87W / 150W

Luminous Flux:

13707Lm

Luminaire Efficiency:

157Lm/W

Protection Rating Class (IP):

IP65, I

Dimensions:

Ø:425 x Y:195mm

Reflector / Beam Angle:

120°

Weight:

8.77Kg

Colour:

Grey

Gear:

ON/OFF , DALI

Colour Temperature: 4000K

Colour Rendering Index (CRI): >80

System Power: 87W / 150W

Luminous Flux: 13707Lm

Luminaire Efficiency: 157Lm/W

Protection Rating Class (IP): IP65, I

Dimensions: Ø:425 x Y:195mm

Reflector / Beam Angle: 120°

Weight: 8.77Kg

Colour: Grey

Gear: ON/OFF , DALI

DETAILS

APPLICATION
Industrial Lighting

MANUFACTURER

COUNTRY OF ORIGIN

CAKE II 120

High-bay luminaire. Housing made of die-cast aluminium, grey aluminium powder-coated, rear of housing with integrated ring screw for suspension. Housing colour grey. Direct wide-beam light distribution using LED lens optic with clear cover made of safety glass. Integrated driver. Electrical connection via 2m long connection cable, 5x1.5mm². Freely suspended luminaires weighing over 5kg must be secured with two separately independent suspension systems (in compliance with VDE 0100-718.559.4.1.3). Housing colour grey RAL 9007.
