pure3-TRIFLECT

Download PDF

LUMINAIRE TYPE

SUSPENDED

System Performance:

32W - 100W

Temperature :

4000K

Luminous Flux:

2551 lm - 11874lm

CRI:

>80

Driver:

On/Off - Dali

Voltage - Frequency:

230V 50/60Hz

Protection Class:

IP20, I

Colours:

Black, White, Silver

Weight:

2.5 Kg - 6.8 Kg

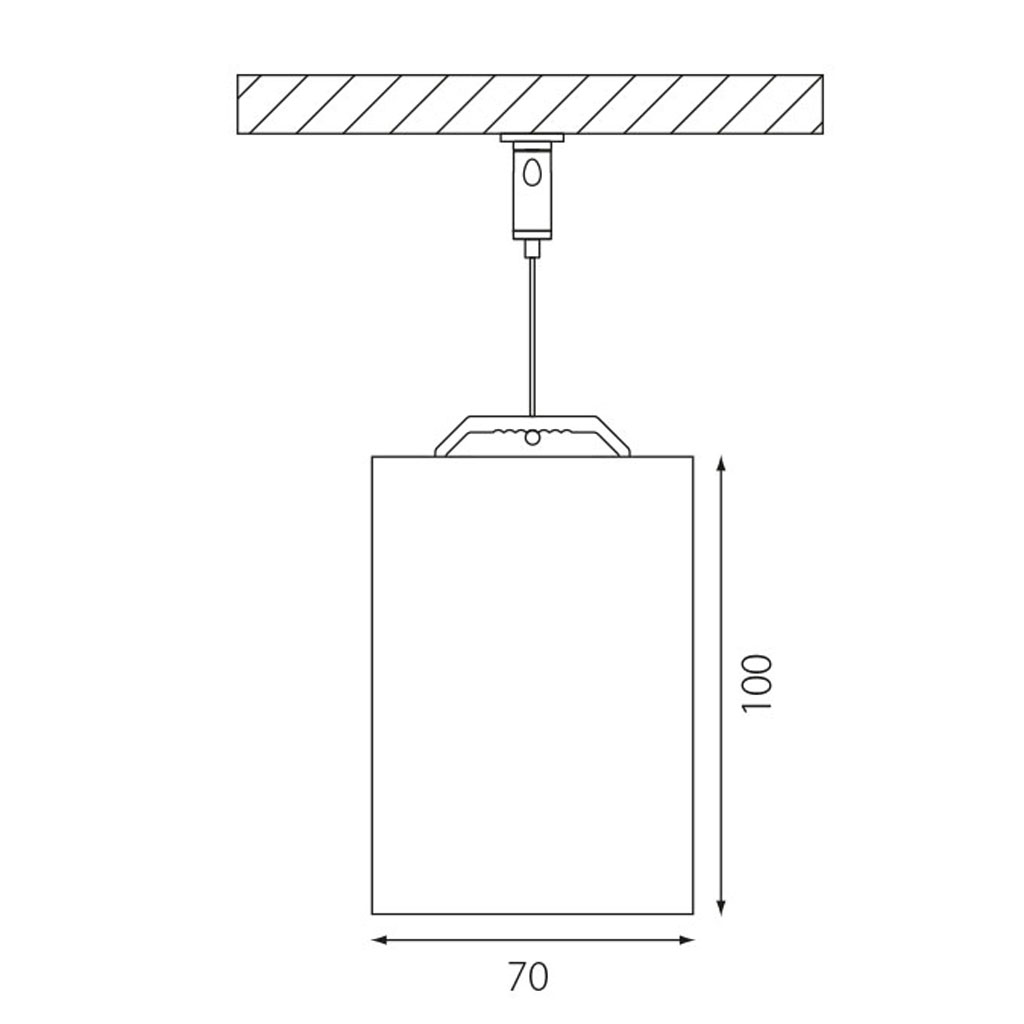

Dimensions:

575 or 1801x70x100 mm

Νr of spots:

3 or 6

System Performance: 32W - 100W

Temperature : 4000K

Luminous Flux: 2551 lm - 11874lm

CRI: >80

Driver: On/Off - Dali

Voltage - Frequency: 230V 50/60Hz

Protection Class: IP20, I

Colours: Black, White, Silver

Weight: 2.5 Kg - 6.8 Kg

Dimensions: 575 or 1801x70x100 mm

Νr of spots: 3 or 6

DETAILS

APPLICATION
Interior & Architect Lighting

MANUFACTURER
COUNTRY OF ORIGIN: AUSTRIA

pure3-TRIFLECT

High-end LED profile luminaire made of extruded aluminum profile, surface powder coated in black, white or silver fine structure matt with light control by means of Reflectors 2 x 3-fold in gold with specially calculated reflector geometry for use as a workplace luminaire or generally as a room light.

Perfectly suited for areas with a transition from daylight to artificial light such as vestibules, reception areas, foyers and many many more. Light control indirectly using transparent polycarbonate diffusor to brighten the ceiling.

Download the datasheet

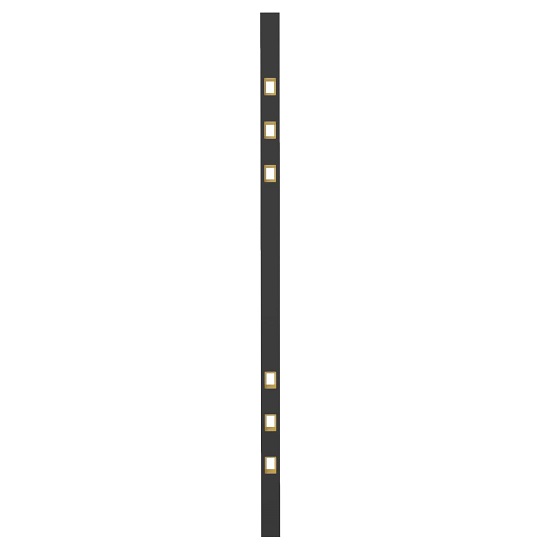

6 spot

3 spot
