PUCK H

Download PDF

LIGHT TECHNOLOGY

LED

System Power:

34W / 40W / 44W

Colour Temperature:

4000K

Luminous Flux:

up to 5200Lm

Colour Rendering Index (CRI):

>80

Luminaire Efficiency:

up to 119Lm/W

Lighting Distribution:

Direct - Indirect

Weight:

5.3Kg / 8.2Kg / 10.8Kg

Protection rating. Class:

IP20 , I

Colour:

White Aluminium

Dimensions:

Ø:415 x H:80mm / Ø:500 x H:90mm / Ø:600 x H:100mm

System Power: 34W / 40W / 44W

Colour Temperature: 4000K

Luminous Flux: up to 5200Lm

Colour Rendering Index (CRI): >80

Luminaire Efficiency: up to 119Lm/W

Lighting Distribution: Direct - Indirect

Weight: 5.3Kg / 8.2Kg / 10.8Kg

Protection rating. Class: IP20 , I

Colour: White Aluminium

Dimensions: Ø:415 x H:80mm / Ø:500 x H:90mm / Ø:600 x H:100mm

DETAILS

APPLICATION
Interior & Architectural Lighting

ΚΑΤΑΣΚΕΥΑΣΤΗΣ

ΧΩΡΑ ΠΡΟΕΛΕΥΣΗΣ

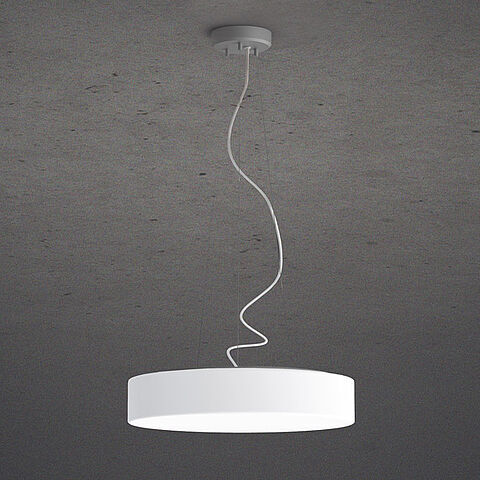

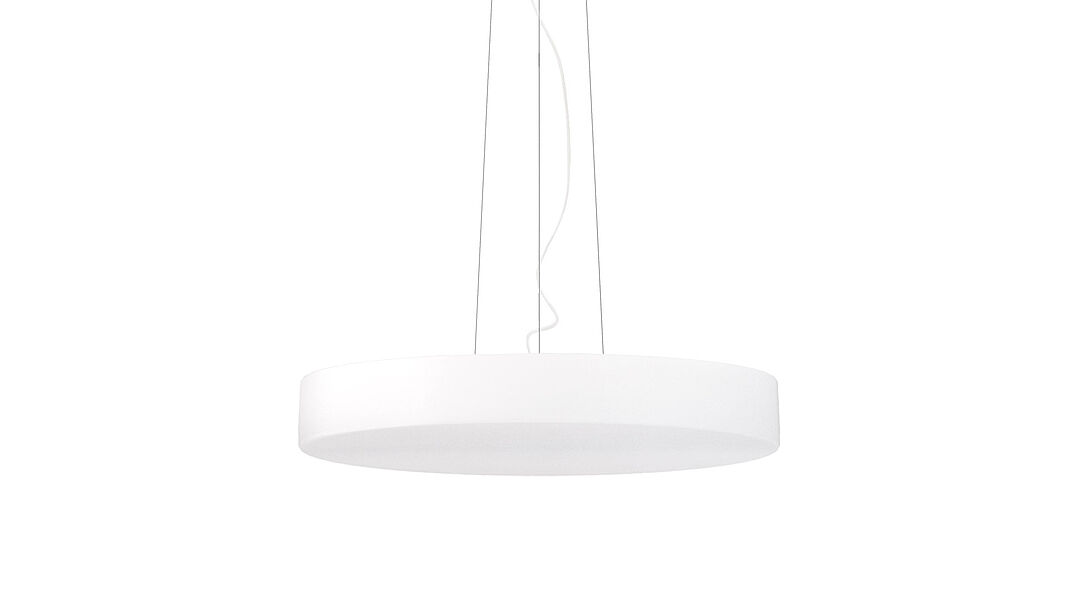

PUCK H

Pendant luminaire PUCK H from LICHTWERK. Made of mouth-blown, triple-layer frosted opal glass. Housing colour white aluminium RAL 9006. Electrical connection via three-pole connection terminal with plug-in contacts; with integrated protective earth conductor connection and release button, suitable for rigid and flexible conductors up to 2.5mm². Ceiling canopy structure-coated. Steel wire suspension with rapid coupling, free height adjustment from 1000 to 2000mm.
