KAYAK 1200

Download PDF

LIGHT TECHNOLOGY

LED

Power:

36W

Colour Temperature:

3000Κ / 4000Κ

Luminous Flux:

4568Lm / 4938Lm

Colour Rendering Index (CRI):

Luminaire Efficiency:

128Lm/W / 138Lm/W

Protection Rating Class:

IP20, I

Gear:

ON/OFF , DALI

Dimensions:

L:1250 x W:321 x H:24mm

Weight:

4.9Kg

Power: 36W

Colour Temperature: 3000Κ / 4000Κ

Luminous Flux: 4568Lm / 4938Lm

Colour Rendering Index (CRI): 80

Luminaire Efficiency: 128Lm/W / 138Lm/W

Protection Rating Class: IP20, I

Gear: ON/OFF , DALI

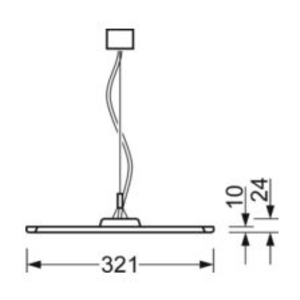

Dimensions: L:1250 x W:321 x H:24mm

Weight: 4.9Kg

DETAILS

APPLICATION

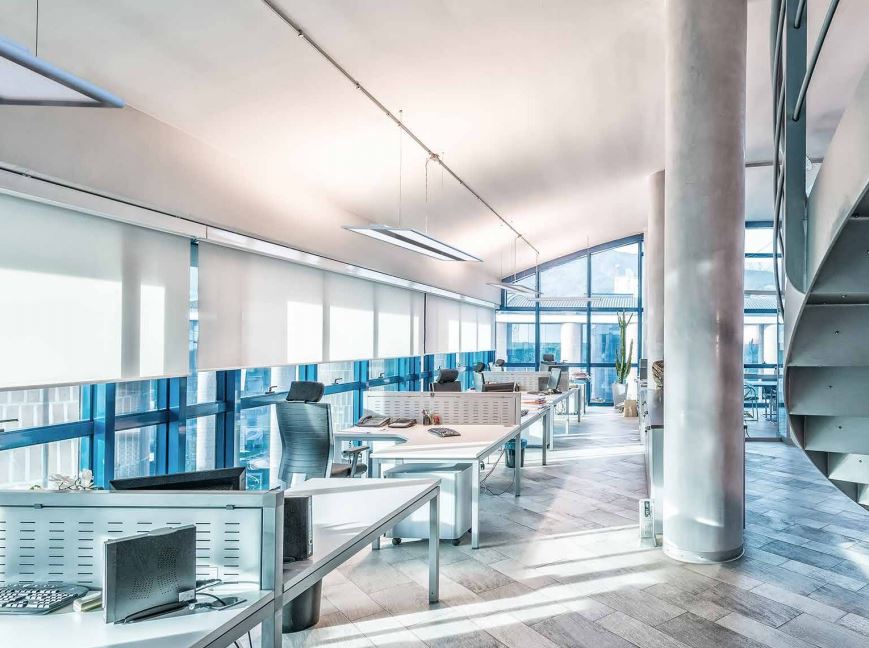

Office Lighting

MANUFACTURER

COUNTRY OF ORIGIN

KAYAK 1200

Pendant luminaire. Ultra-flat luminaire housing design, painted extruded aluminium profile, visible installation height 10/24mm. Housing colour silver grey/white aluminium RAL 9006. Direct/indirect light distribution, direct share by means of a microprism made of PMMA, homogeneous light emission through lateral LED light coupling in Light Guide panel and semi-diffuse, reflective white coating, with special decoupling technology for defined ceiling illumination; for VDU workstations, omnidirectional glare reduction according to the current norm DIN-EN 12464-1. Integrated LED driver design. Electrical connection via integrated transparent connection cable 5 x 0.75mm², length 1900mm, stripped cable ends. Complete height-adjustable suspension set included in the scope of delivery. Suspension set with a canopy and integrated light control available separately as accessories.
