INDIVIDUAL LINE\HANDRAIL

Download PDF

$INDIVIDUAL LINE\HANDRAIL$

LIGHT TECHNOLOGY

LED

System Power:

7.2W - 24W

Light Colour:

NW / PM / CW

Luminous flux:

up to 2300Lm

Colour rendering index (CRI):

90 / 95

Lighting Distribution:

90º with frosted cover / 85º Asymmetric Canopy with Frosted cover

Protection rating. Class:

IP20 , III

Dimensions:

L:600-1800mm

System Power: 7.2W - 24W

Light Colour: NW / PM / CW

Luminous flux: up to 2300Lm

Colour rendering index (CRI): 90 / 95

Lighting Distribution: 90º with frosted cover / 85º Asymmetric Canopy with Frosted cover

Protection rating. Class: IP20 , III

Dimensions: L:600-1800mm

DETAILS

APPLICATION
Refrigeration Lighting
Food Lighting

MANUFACTURER

COUNTRY OF ORIGIN
AUSTRIA

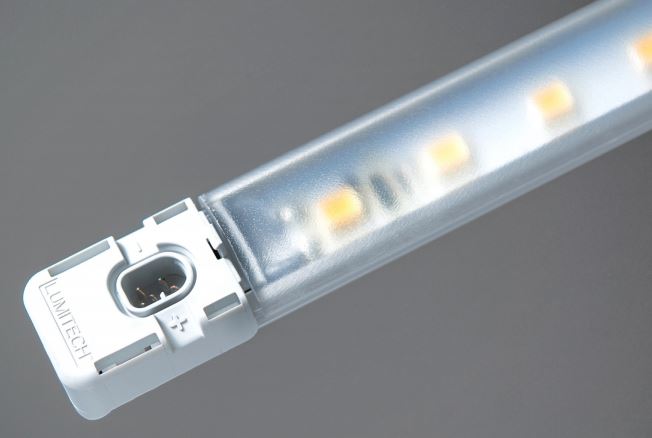

INDIVIDUAL LINE\HANDRAIL

Efficient lighting of handrails for cooling and freezer equipment Available in a variety of light colours and can be matched to specific food types Ready-to-connect solution available, thanks to our Quick Connection System (QCS) High operational performance due to directional lighting, integrated heat removal and highly efficient LEDs Excellent product illumination thanks to the combination of SMD LEDs and innovative optics Safe-use operation due safety extra-low voltage (SELV) Simple installation with application of fixing plates Heat sink profile made of anodised, extruded aluminium LED modules protected against moisture & dust by Conformal coating End caps made of PBT Linear lenses made of PMMA Dimming capability
