CREAVO

Download PDF

System Performance:

25W

Temperature :

4000K

Luminous Flux:

4200 lm

CRI:

Luminous Efficiency:

168 lm/W

Voltage - Frequency:

220-240V - 50/60 Hz

Protection Class:

IP20, I, IK06

Colour:

White RAL9016

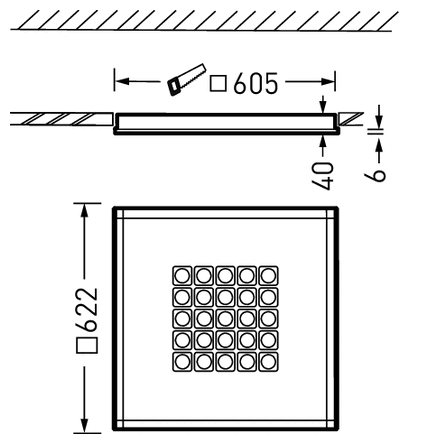

Dimensions:

622 x 622 x 45 mm

System Performance: 25W

Temperature : 4000K

Luminous Flux: 4200 lm

CRI: 80

Luminous Efficiency: 168 lm/W

Voltage - Frequency: 220-240V - 50/60 Hz

Protection Class: IP20, I, IK06

Colour: White RAL9016

Dimensions: 622 x 622 x 45 mm

DETAILS

APPLICATION
Architectural Lighting
Interior Lighting

ΚΑΤΑΣΚΕΥΑΣΤΗΣ

ΧΩΡΑ ΠΡΟΕΛΕΥΣΗΣ

CREAVO

Creavo is the ideal solution for directional light in the office: three optics with ConVision® technology, various module sizes and four mounting methods are available. Typical for the luminaire range: light chambers as an element of design. Light management, emergency light and location-based services can also be implemented via the IoT harbour.

Mounting methods

Suitable also for use in system ceilings with visible grids and suitable for recessing in system ceilings with concealed grids and plasterboard ceiling openings in combination with accessories to be ordered separately (ArimoS MRX / Creavo ZBB/1). Installation in plasterboard openings using installation accessories requires a ceiling material thickness of > 36 mm.
