Back to TRACK LIGHTS

B.VEO Track

Download PDF

LUMINAIRE TYPE

TRACK LIGHT (3Phase Power Track)

System Performance:

Luminous Flux:

1500 lm - 5000 lm

Colour Temperature:

2700K, 3000K EW-BC, 3500K, 4000 K, EC-BF, Meat, Meat + Fish

Luminous efficiency:

124.7 lm/W

CRI [RA]:

>80

Lifespan:

L80/B10 (25° C) = 50000h

Dimensions:

L: 228mm W: 91mm H: 151mm

Pan/Tilt range:

355° turning - 90° swivel

Beam angle:

12°-60° - WFL - WideFlood

Material:

Die-cast Aluminium

Rated Frequency:

50/60 Hz

Rated Voltage:

220V

Protection:

IP 20

Protection Class:

System Performance:

Luminous Flux: 1500 lm - 5000 lm

Colour Temperature: 2700K, 3000K EW-BC, 3500K, 4000 K, EC-BF, Meat, Meat + Fish

Luminous efficiency: 124.7 lm/W

CRI [RA]: >80

Lifespan: L80/B10 (25° C) = 50000h

Dimensions: L: 228mm W: 91mm H: 151mm

Pan/Tilt range: 355° turning - 90° swivel

Beam angle: 12°-60° - WFL - WideFlood

Material: Die-cast Aluminium

Rated Frequency: 50/60 Hz

Rated Voltage: 220V

Protection: IP 20

Protection Class: I

DETAILS

APPLICATION

Retail Lighting
Architectural Lighting

Food Lighting

MANUFACTURER

COUNTRY OF ORIGIN

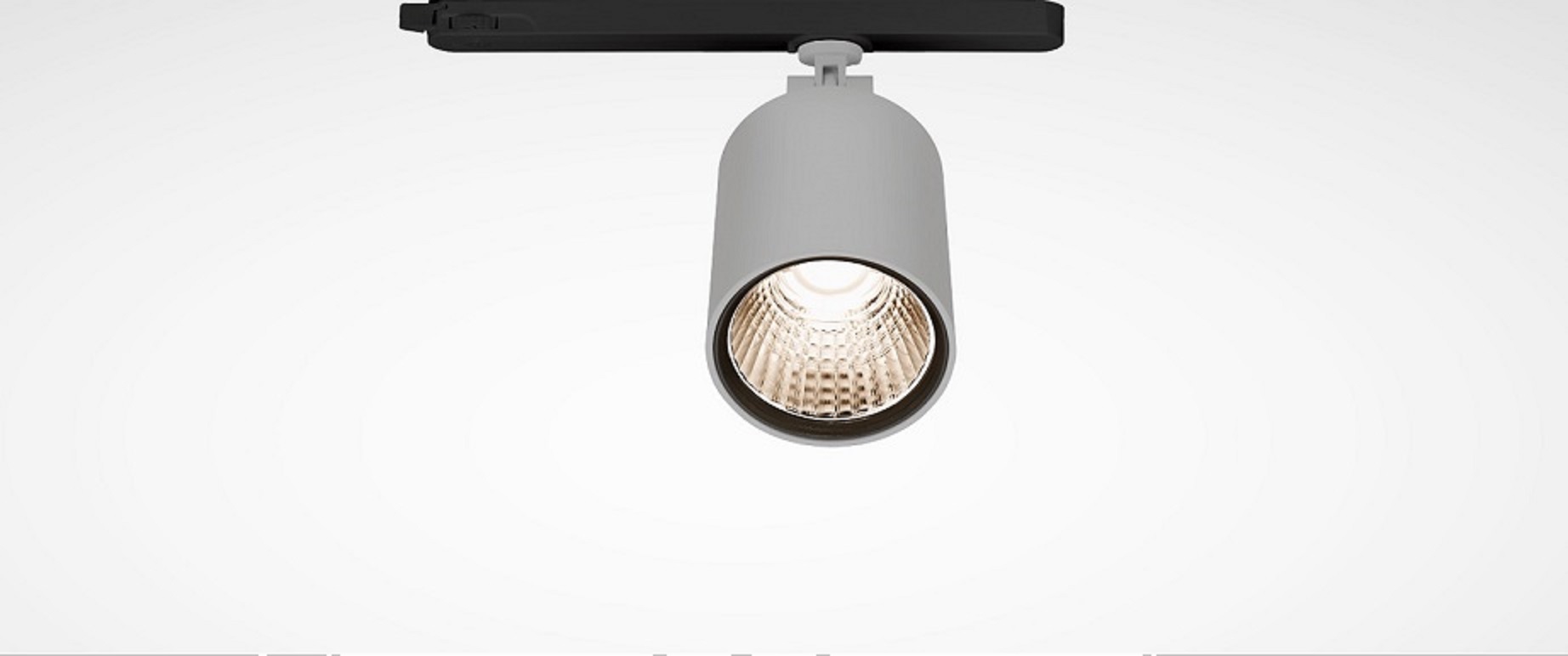

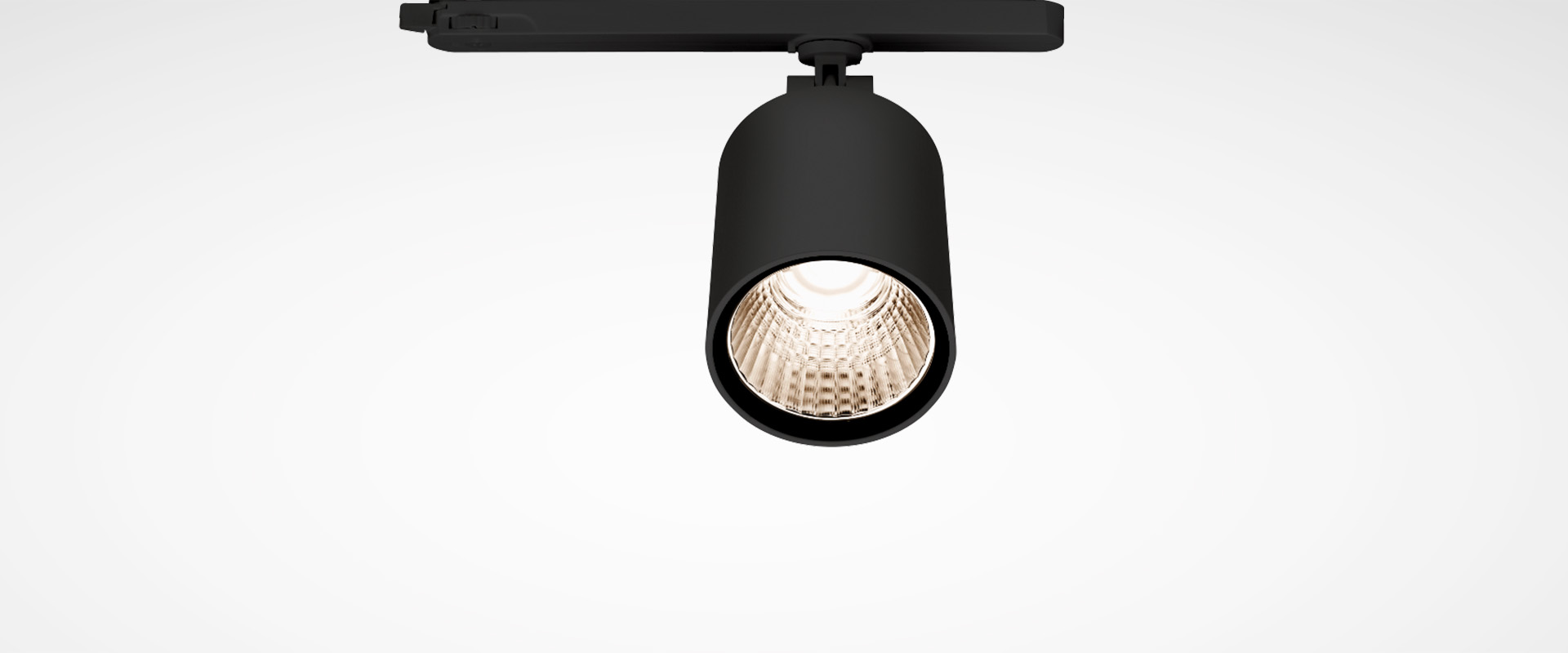

B.VEO Track

With B.VEO TRACK the product family is complete. What is special about this single spotlight variant is its extremely narrow housing that visually almost fuses with the power track. In that way a very uncluttered pattern of the ceiling lighting is obtained. This becomes possible through the integration of the driver into the adapter.

Wireless lighting management available for low-installation modernization. B.VEO TRACK is the most elegant directional spotlight from this product family. As a luminaire it steps back even more markedly than the classic single spotlight B.VEO. Also B.VEO TRACK brings clear, strong and focused accent light into all areas and copes with the most varied requirements easily by means of its turning and tilting spotlight head. The spotlight without ostentation is also suitable for mounting on vertical power tracks.
