SINUS

Download PDF
SINUS SINUS SINUS SINUS SINUS
Previous
Next
LUMINAIRE TYPE
RECESSED - SURFACE - SUSPENDED
System Performance:
44-81W
Temperature :
2700 - 3000 - 4000K
Luminous Flux:
3738 lm -8720 lm
CRI:
>80 - >90
Driver:
On/Off - Dali
Voltage - Frequency:
230V - 50/60 Hz
Protection Class:
IP40

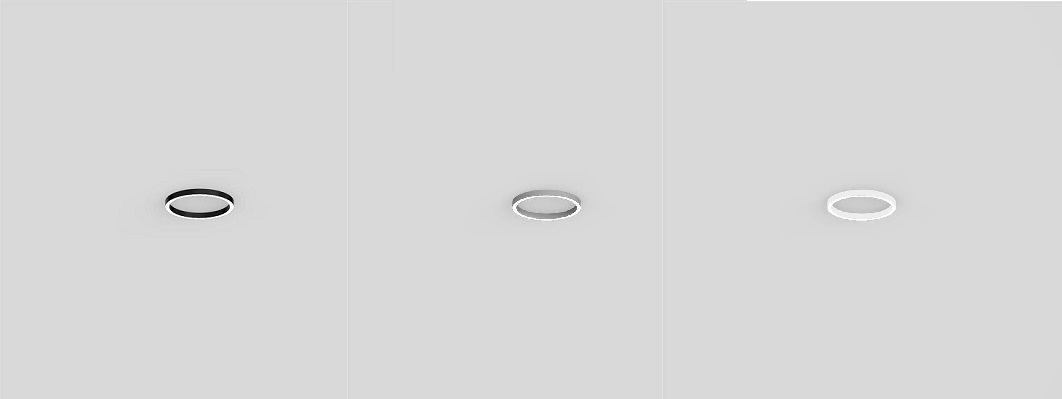

Colours:
Black, Silver, White

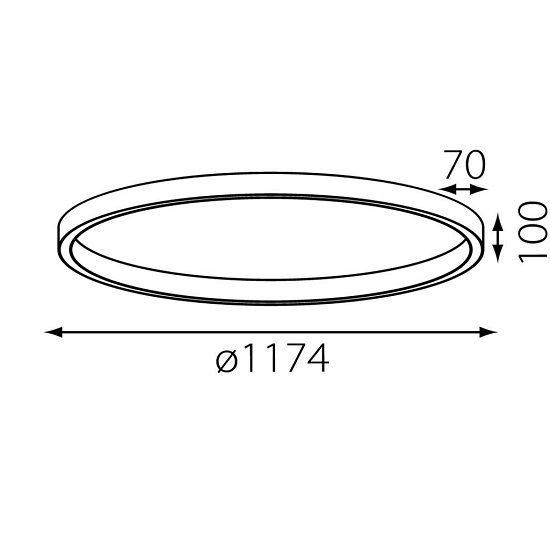

Dimensions:
D: 1174mm H: 100mm
System Performance: 44-81W
Temperature : 2700 - 3000 - 4000K
Luminous Flux: 3738 lm -8720 lm
CRI: >80 - >90
Driver: On/Off - Dali
Voltage - Frequency: 230V - 50/60 Hz
Protection Class: IP40
Colours: Black, Silver, White
Dimensions: D: 1174mm H: 100mm
DETAILS DETAILS DETAILS DETAILS DETAILS
Next
DETAILS

APPLICATION

Retail Lighting

Office Lighting

  • MANUFACTURER
  • COUNTRY OF ORIGIN: AUSTRIA
SINUS

Sinus has a lot to offer: The ring luminaire impresses with high visual comfort (choice of homogeneous opal diffuser or glare-free microprism), various light colours including HCL, countless colour options (housing, cable), direct or direct/indirect light emission and optional sensors.



Moreover, sinus fits the pure3 luminaire family like a glove and can be combined as a system to implement individual lighting solutions.



In the acoustic version – sinus.quiet – the luminaire not only provides ideal lighting but also influences the background noise in the room thanks to an internal, highly effective acoustic absorber for regulating the reverberation time.

See the Product brochure
